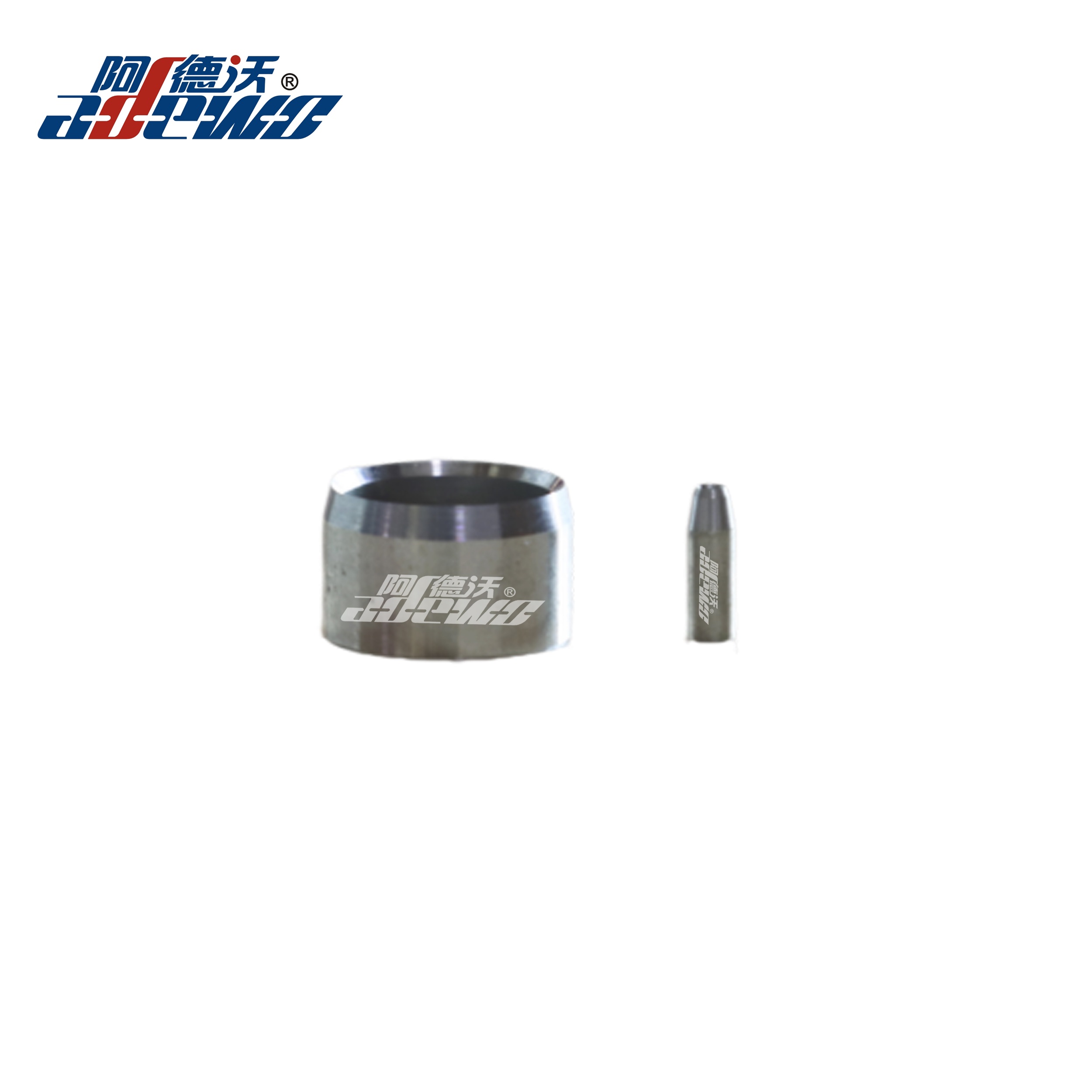

Punches are precision manufactured and precision ground for the tightest height tolerances and best cutting on-press. Picture of (ADW039) Screw Spring Punch for reference:
|
No. |
Diameter |
Height |
| 1 |
Φ1mm-Φ2.5mm |
7mm-8mm |
| 2 |
Φ3mm-Φ5mm |
7mm-8mm |
| 3 |
Φ5.5mm-Φ8mm |
7mm-8mm |
| 4 |
Φ8.5mm-Φ9.5mm |
7mm-8mm |
| 5 |
Φ10.5mm-Φ11mm |
7mm-8mm |
| 6 |
Φ11.5mm-Φ12mm |
7mm-8mm |
| 7 |
Φ12.5-mm-Φ14mm |
7mm-8mm |
| 8 |
Φ14.5mm-Φ16mm |
7mm-8mm |
| 9 |
Φ16.5mm-Φ18mm |
7mm-8mm |
| 10 |
Φ18.5mm-Φ20mm |
7mm-8mm |
| 11 |
Φ20.5mm-Φ22mm |
7mm-8mm |
| 12 |
Φ22.5mm-Φ24mm |
7mm-8mm |
| 13 |
Φ24.5mm-Φ26mm |
7mm-8mm |
| 14 |
Φ1mm-Φ2.5mm |
9.5mm-12mm |
| 15 |
Φ3mm-Φ5mm |
9.5mm-12mm |
| 16 |
Φ5.5mm-Φ8mm |
9.5mm-12mm |
| 17 |
Φ8.5mm-Φ10mm |
9.5mm-12mm |
| 18 |
Φ10.5mm-Φ11mm |
9.5mm-12mm |
| 19 |
Φ11.5mm-Φ12mm |
9.5mm-12mm |
